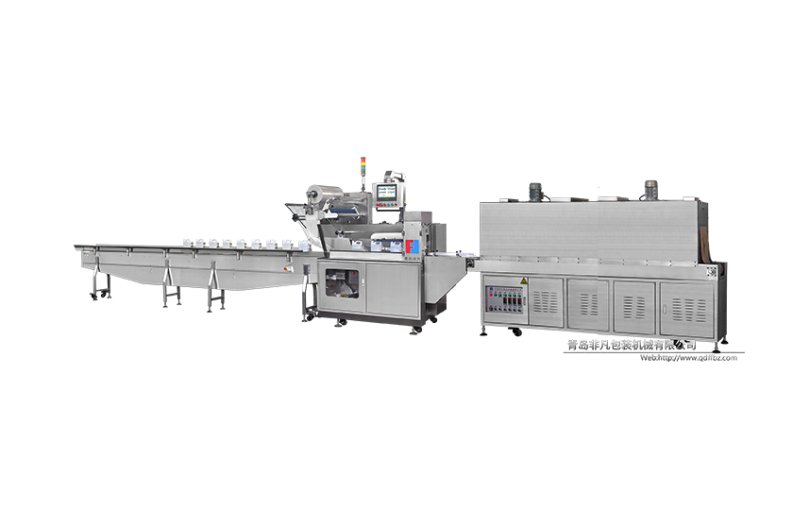

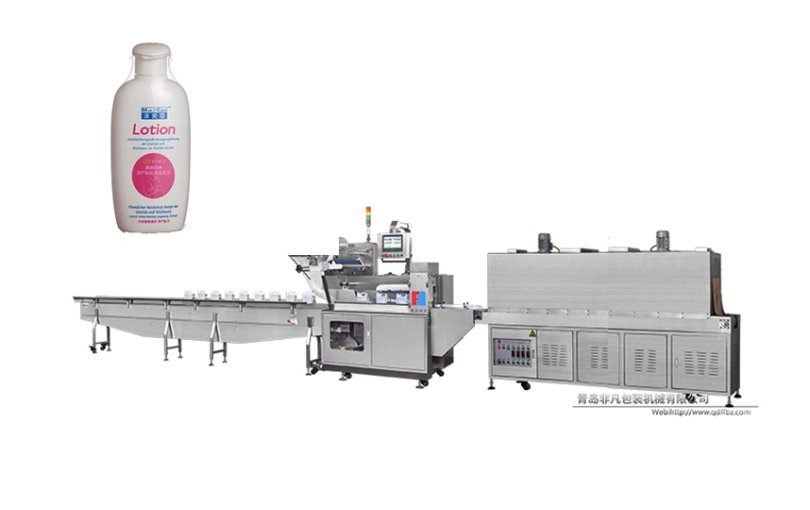

FFB - L Vertical End Sealer Type Shrink Packing Machine

Heat Shrink Packaging Machine

FFB - L Vertical End Sealer Type Shrink Packing Machine

The FFB - L is an innovative vertical end sealer shrink packing machine developed by our company. It reimagines the horizontal sealer as a vertical one, positioning seals on the sides of packages in a U - shape. This design preserves product front - side printed patterns, eliminates the need to change the motion direction of filled products from production lines, and enables seamless connection with production lines for fully automatic packing. It also reduces broken vertical seals, enhances package aesthetics, and saves space with a compact footprint.

INQUIRE NOW

Product Details

Core Features

Innovative Sealing Design: Vertical sealer placement creates U - shaped side seals, protecting front - side prints and reducing seal breakage for more attractive packaging.

Seamless Line Integration: Filled products from production lines can directly connect to the machine without motion direction changes, enabling full automation.

Space - Saving: Fewer process steps and a compact design minimize floor space usage.

Packing Details

Packing Material: PVC, POF, and other tested heat - shrinkable materials.

Optional Configurations

Date coding machine
automatic film splicing system
Auto feeding system
Label sticker

Technical Specifications

Model	FFB - L4512	FFB - L4515	FFB - L4518	FFB - L5912	FFB - L5915	FFB - L5918
Max Film Width (mm)	450	450	450	590	590	590
Speed (bags/min)	30–150	30–150	30–150	30–150	30–150	30–150
Length of Pack (mm)	140–450	150–450	150–450	140–450	150–450	180–450
Pack Width (mm)	5–45	5–65	15–85	5–65	5–85	15–120
Pack Height (mm)	10–300	10–300	10–300	10–300	10–300	10–300
Electric Power Voltage (V)	220	220	220	220	220	220
Total Installed Power (Kw)	4	4	4	4	4	4
Power of Electrical Heating (Kw)	15	15	15	15	15	15
Mass (Kg)	1200	1200	1300	1300	1400	1400
Dimensions (L×W×H, mm)	5700×1230×1800	5700×1230×1800	5700×1320×1800	5700×1320×1800	5700×1360×1800	5700×1360×1800
