Application

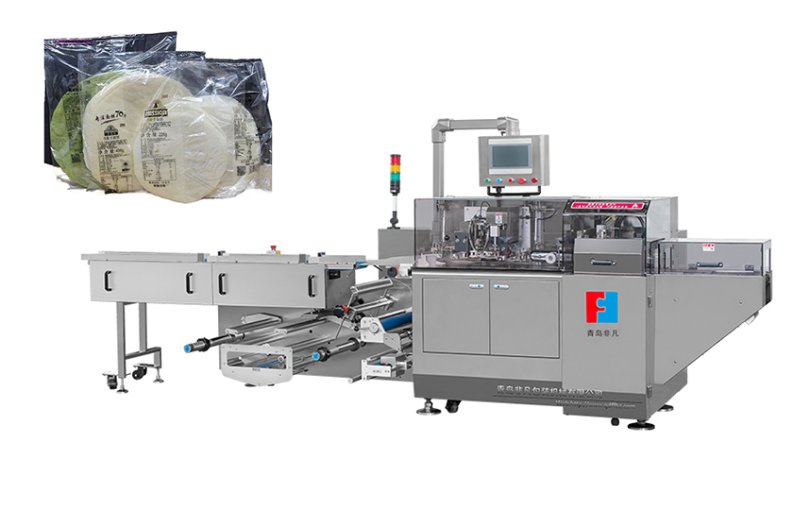

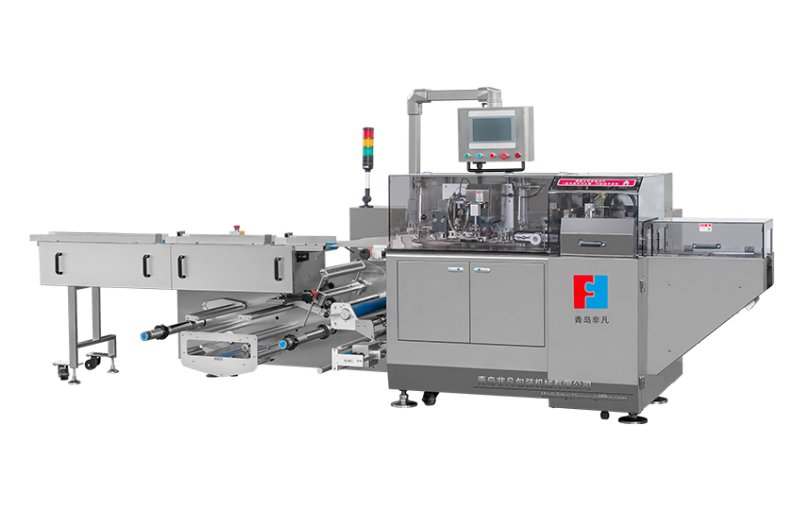

Engineered for high-precision family packing of bulk products, this machine utilizes servo motor-controlled bottom film feeding technology. It’s ideal for large pita bread and grouping multiple individual packages into a single retail unit, it excels at applications such as:
Pita bread packing
Multi-packs of instant noodles (e.g., 5-bag bundles)
Assorted puffed food combinations
Consumer goods requiring compact, stable packaging
The advanced box motion end sealer design delivers consistent pressure and extended dwell time, ensuring reliable seals even with thick films or challenging packaging materials. This makes it particularly well suited for applications demanding airtight seals or reduced packaging volume.
Technical Specifications
Parameter | Specification |
Model | FFC-M590 |
Max Film Width | 590 mm (Customizable up to 720mm/820mm based on client requirements) |
Packaging Speed | 30-180 bags/min (Adjustable based on product dimensions and film properties) |
Pack Length Range | 80-450 mm |
Pack Width Range | 10-200 mm |
Pack Height Range | 5-120 mm |
Voltage | 220V |
Total Power | 4 kW |
Machine Weight | 1,200 kg |
Dimensions (L×W×H) | 5,700 × 1,250 × 1,800 mm |
Our excellent service and quality have earned us the trust of numerous renowned companies, and we are now the designated packaging machine supplier for numerous renowned companies both domestically and internationally.
